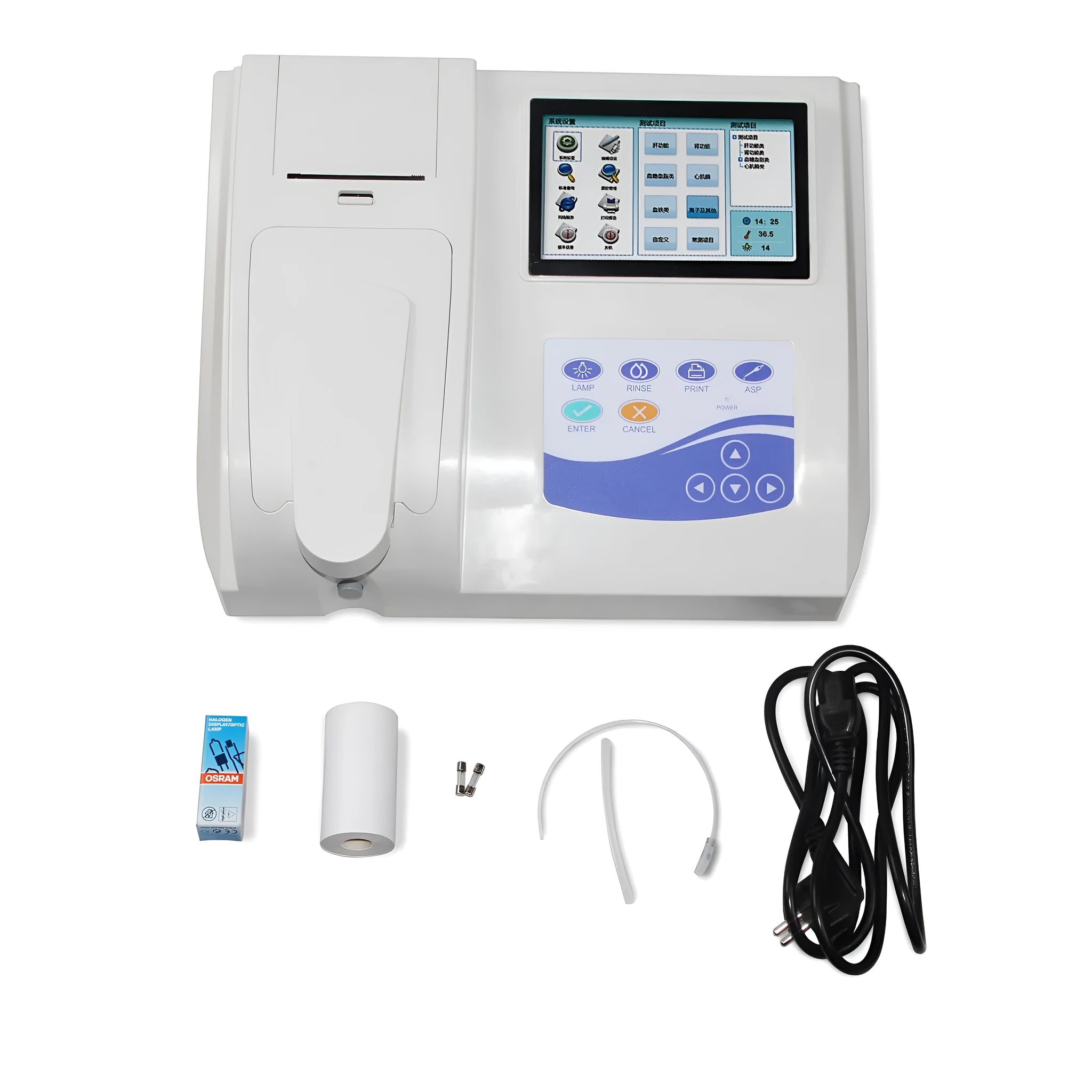

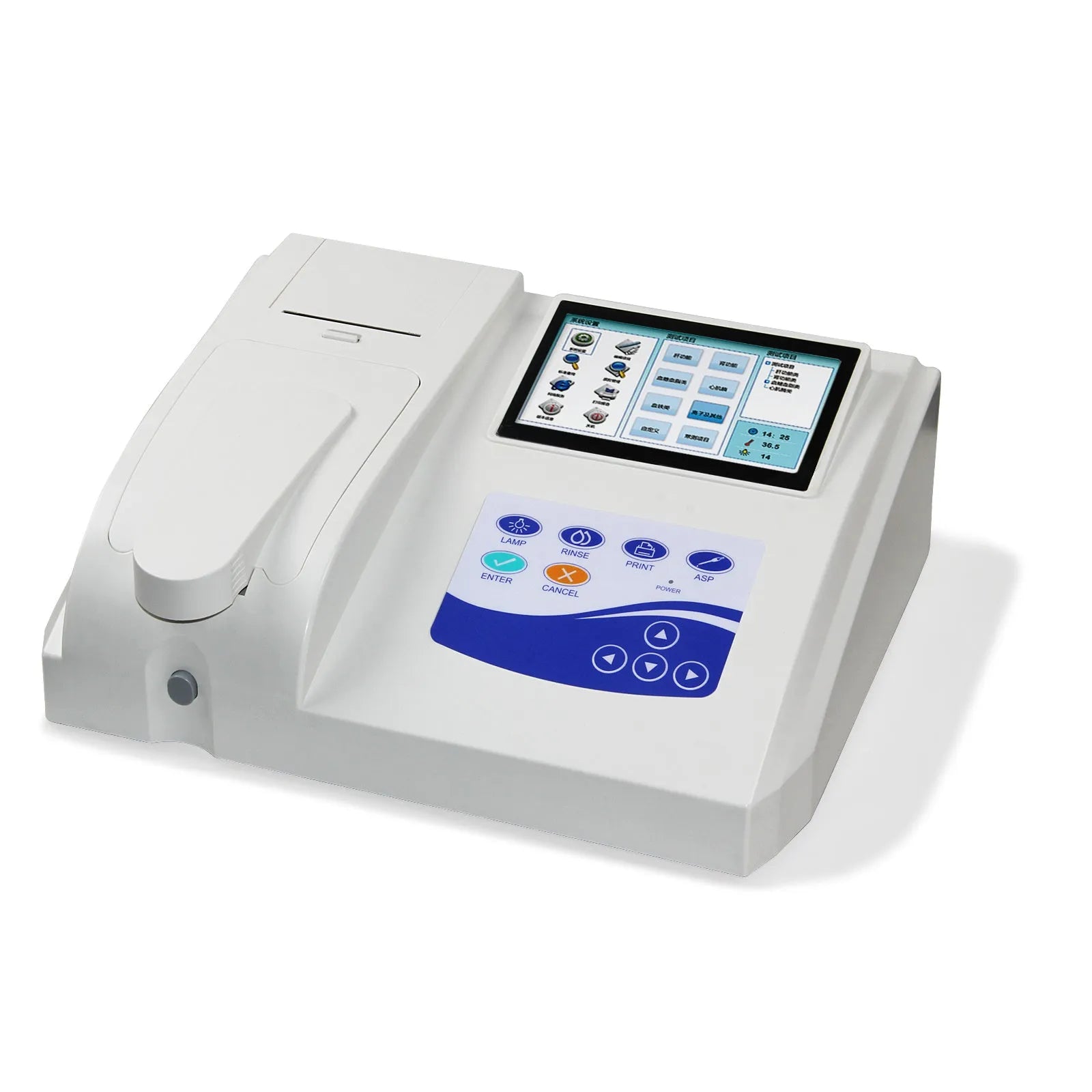

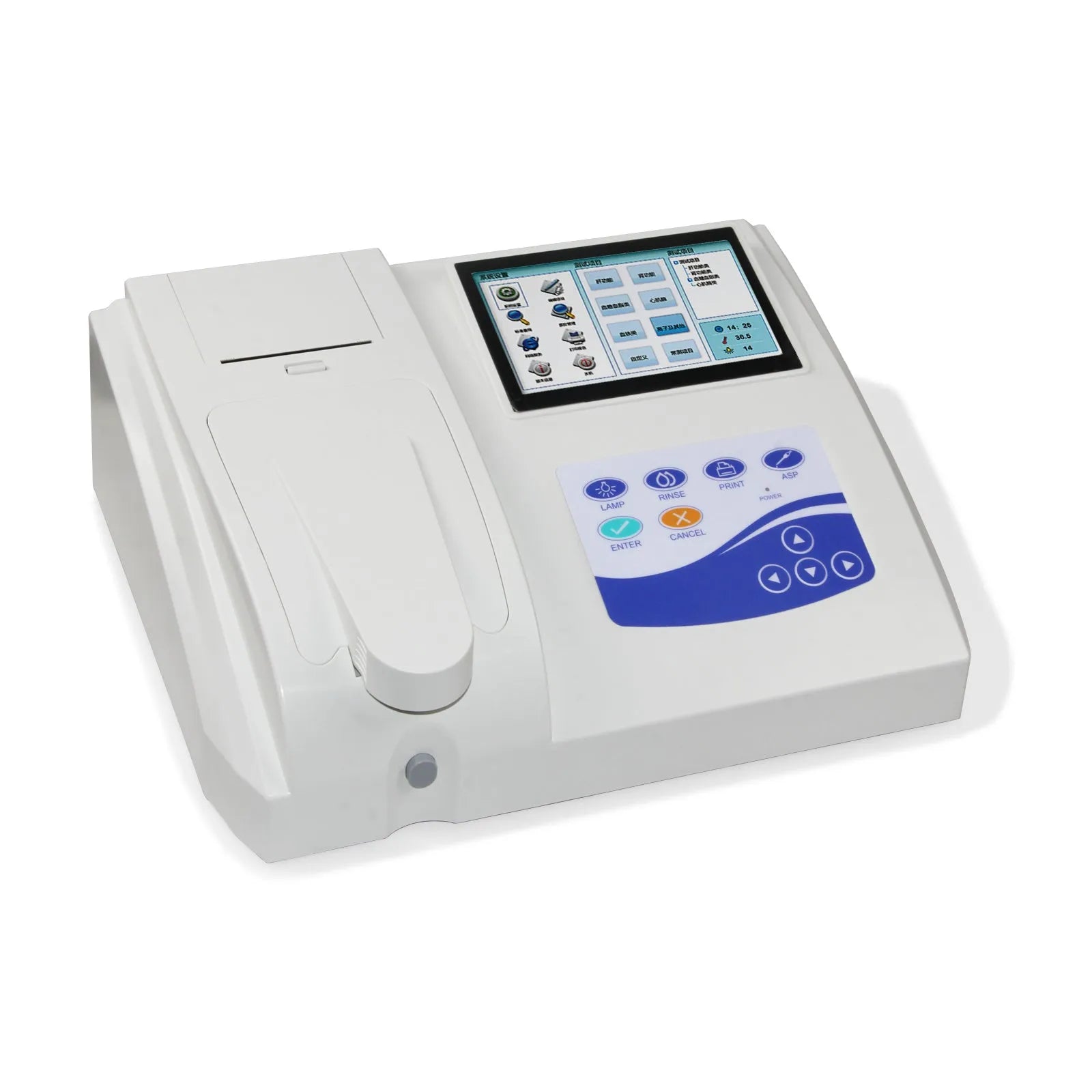

CONTEC BC300 Semi-Auto Biochemistry Analyser: Touch Screen Device with Multi-Parameter Testing and Printer

The CONTEC BC300 is a semi-automatic biochemistry analyser designed for clinical and laboratory settings, providing a streamlined solution for measuring biochemical indexes from blood and other body fluids. Its core function is to analyse samples and combine results with other clinical information to aid in disease diagnosis, evaluate organ function, and establish norms for future therapy. The device is built around a Linux operating system, presenting a colour graphical interface that users can operate through a responsive 7-inch touch screen, dedicated function keys, or connected external USB peripherals like a mouse and keyboard. This flexibility, coupled with support for English, Chinese, Spanish, and Portuguese, makes it accessible for various operational environments. The inclusion of a built-in thermal printer, or the option to connect an external one, allows for immediate reporting of test results, enhancing workflow efficiency directly at the point of analysis.

Features and Construction

The CONTEC BC300 is engineered with a focus on reliable performance and user-centric operation, combining precise optical components with robust data management systems. Its construction facilitates accurate measurements while offering extensive storage and connectivity options for modern laboratory workflows.

Material and Build

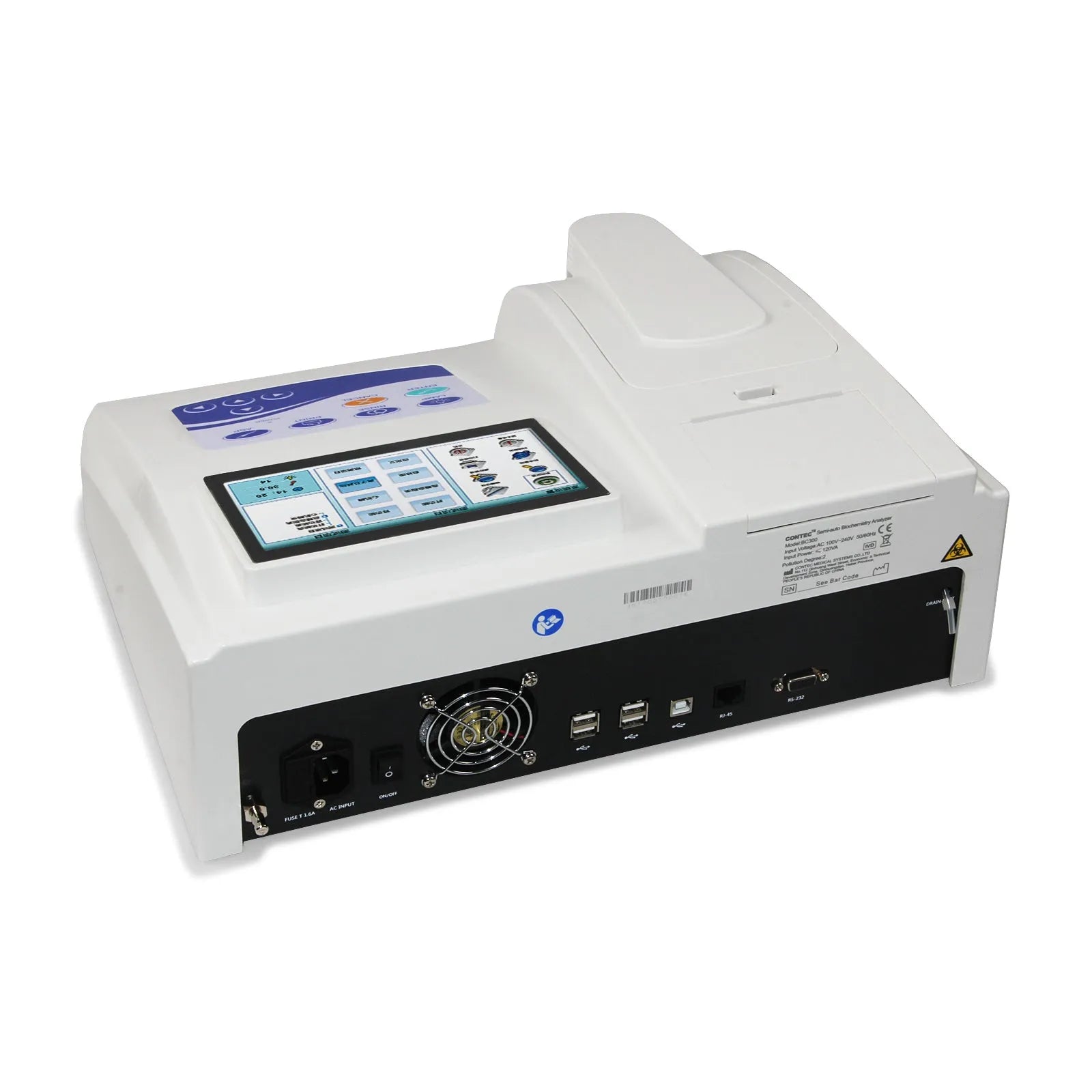

At the heart of the analyser's optical system is a long-life halogen lamp light source. The device employs a 30μl quartz flow colourimetric cell, a material chosen for its optical properties in biochemical analysis. The main unit, with dimensions of 410mm in length, 340mm in width, and 150mm in height, houses an embedded high-speed processor and a suite of interfaces including a standard RS232 port, four USB interfaces, and an Ethernet connection. This combination of materials and electronic components is assembled into a compact unit weighing 6 kg, designed for bench-top use in professional environments.

Size and Practical Fit

The analyser's physical footprint of 410mm(L)×340mm(W)×150mm(H) makes it a space-efficient choice for laboratory benches or clinical workstations. Weighing 6 kg, it is relatively portable within a lab setting. The device is specified for operation within an environmental temperature range of 10°C to 30°C and at relative humidity levels of ≤80%, ensuring it performs reliably under standard laboratory conditions. These specifications define its practical placement, ensuring it is used in controlled environments to maintain measurement accuracy and instrument longevity.

Uses and Placement

The CONTEC BC300 serves as a diagnostic tool in medical and research contexts, analysing body fluids to generate data critical for patient care and study protocols. Its design supports both dedicated clinical use and adaptable application in various professional settings.

Event or Professional Use

In clinical laboratories, hospitals, and research facilities, this analyser performs vital diagnostic functions. It measures biochemical parameters from blood and other fluids, providing data used by medical professionals to diagnose diseases, assess organ function, and monitor therapy. The device supports multiple measurement methods (Endpoint, Two-point, Kinetics) and calculation methods (Factor, Linear Regression), allowing technicians to tailor the analysis to specific diagnostic protocols. Its ability to store 500 test items and 10,000 results, complete with quality control charting for two batch numbers per item, makes it suitable for handling patient caseloads and maintaining rigorous laboratory standards.

Everyday Home Use

This product is not designed for home or personal use. It is a professional-grade medical device intended for operation by trained personnel in controlled clinical or laboratory environments. Its usage, maintenance, and interpretation of results require specific technical knowledge and are governed by professional standards and regulations applicable to medical diagnostic equipment.

Benefits and Buying Value

The CONTEC BC300 offers practical advantages through its integrated features, data integrity safeguards, and operational flexibility, providing value in settings where reliable, multi-parameter analysis is required.

Reuse and Low Maintenance

The analyser incorporates features aimed at sustaining its operational life and simplifying upkeep. An auto-dormancy function for the lamp helps to prolong its life. The system includes a self-check function that monitors the light path, liquid path, and mechanical components, issuing an alarm upon detecting failures, which aids in preventative maintenance. Furthermore, the power-off protection function automatically saves measurement results, preventing data loss during unexpected interruptions and contributing to a reliable, low-friction user experience.

Why Choose This Product

The CONTEC BC300 presents a consolidated solution for semi-automatic biochemistry analysis. Its value lies in the combination of a user-friendly touch-screen interface, substantial data storage capacity, and inclusive connectivity (RS232, USB, Ethernet). The provision of a built-in thermal printer removes a potential extra purchase and integration step. For laboratories seeking a capable analyser that covers essential wavelengths, offers precise temperature control (±0.1°C), and includes quality control charting, this model provides a comprehensive set of tools in a single, space-efficient unit.
