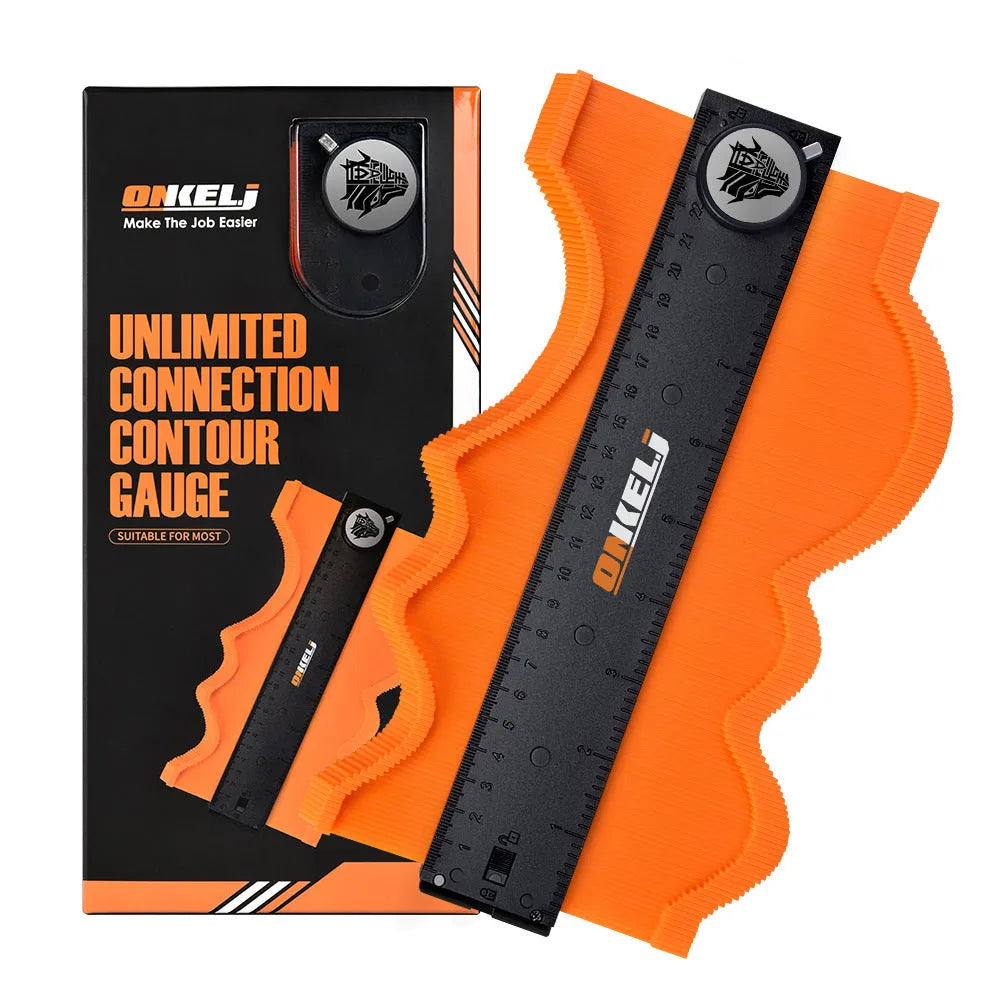

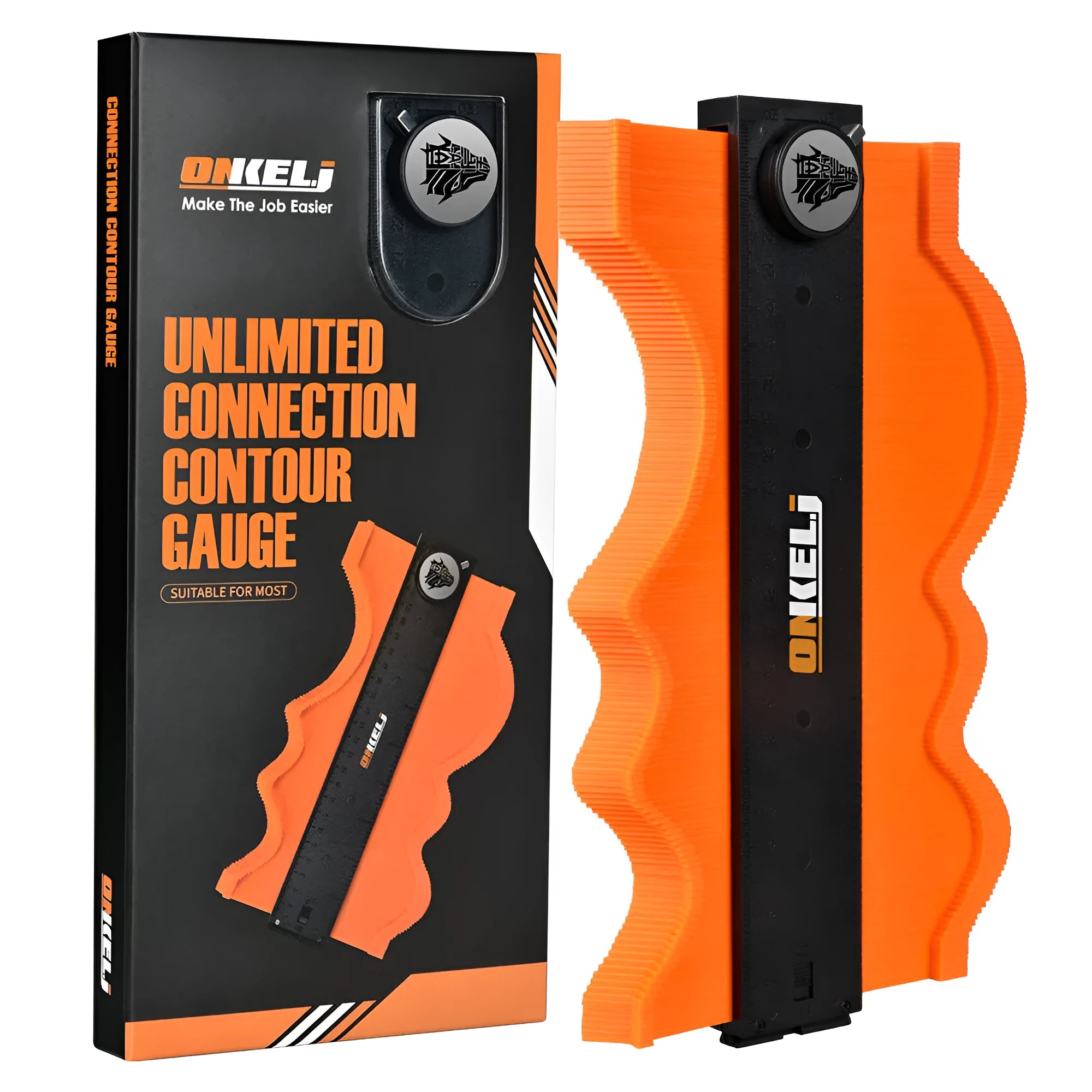

Professional 10-inch Contour Gauge with Lock Belt for Precise Irregular Shape Profiling

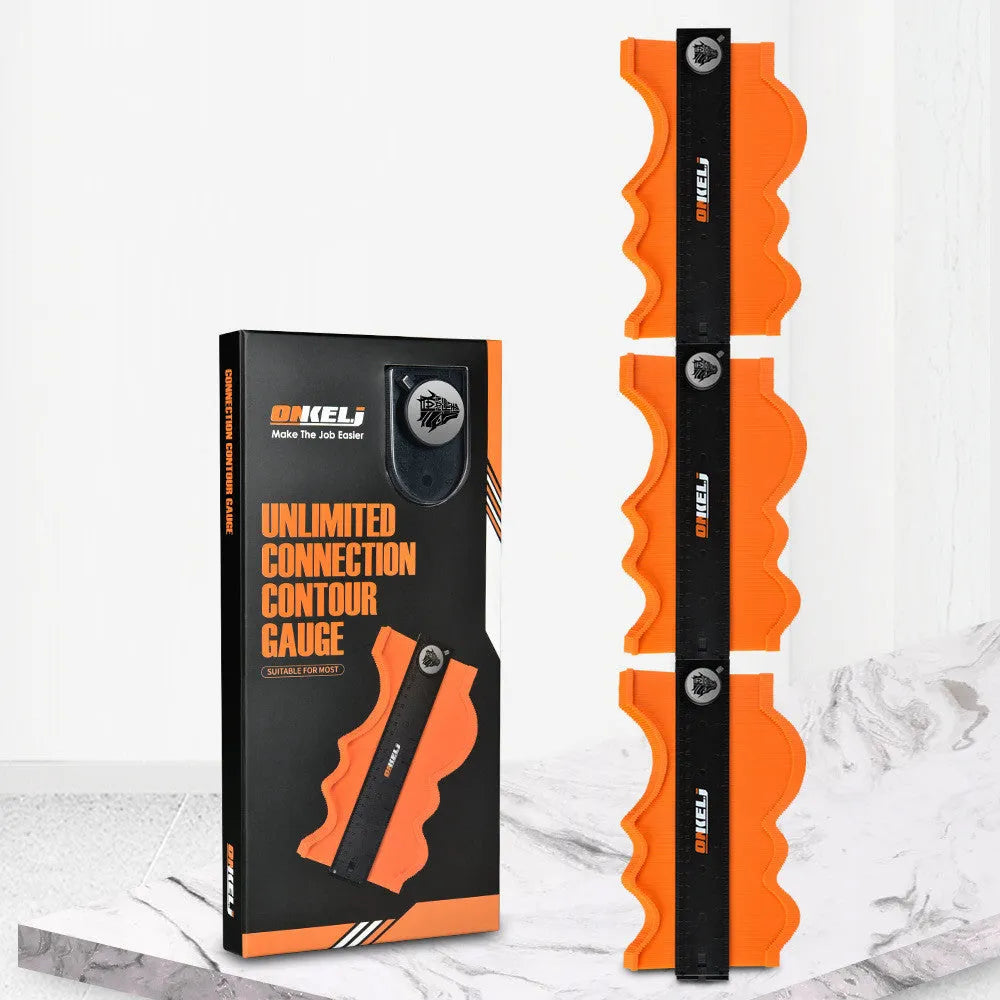

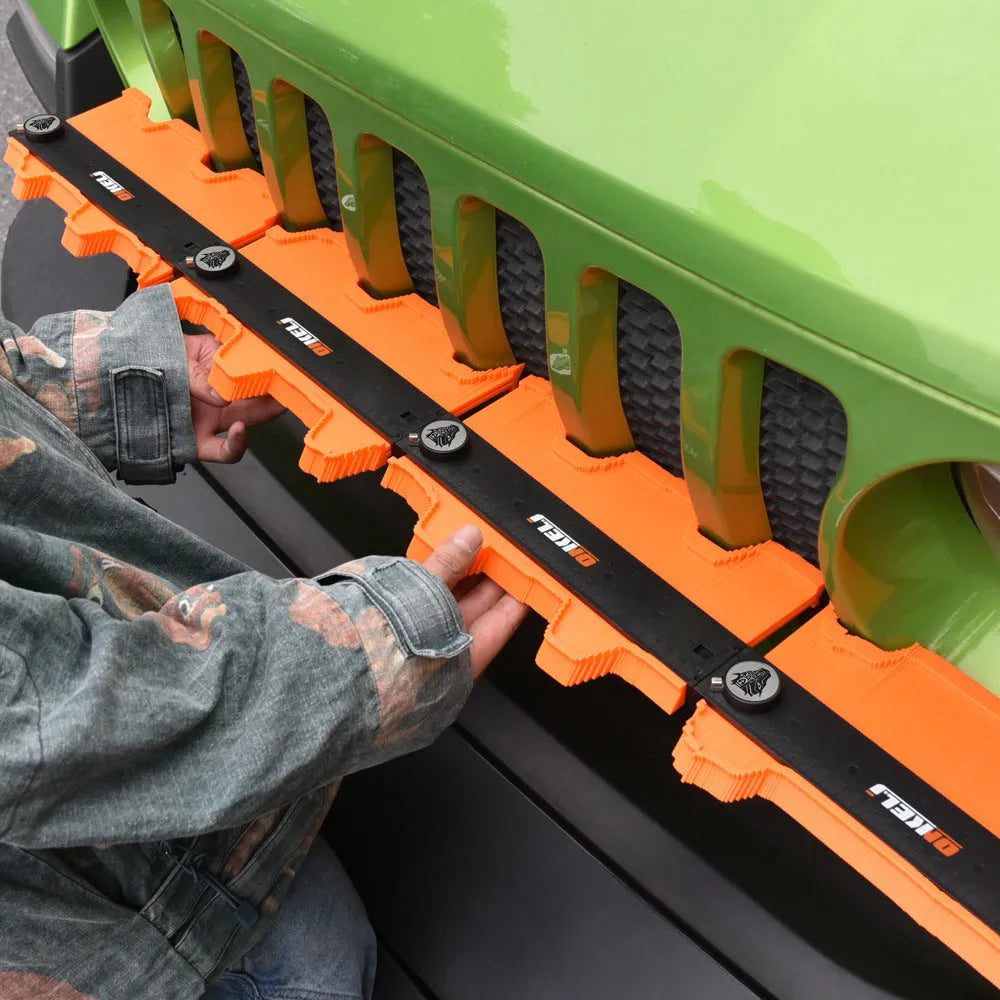

Accurately transferring curved or irregular profiles for cutting, fitting, or marking can be a challenge with standard measuring tools. This 10-inch contour gauge with its innovative infinite splicing teeth design solves this problem directly. The tool allows you to press its array of teeth against any non-linear edge, from tile contours to pipe curves, and capture its exact shape. A key feature is the integrated lock belt mechanism, which secures all teeth in position once they have conformed to the profile, preventing any movement or loss of accuracy during the transfer process. Built from a combination of ABS plastic and stainless steel, it provides a robust yet manageable tool for professional tradespeople and serious DIY enthusiasts requiring precise measurements.
Features and Construction
This contour gauge is engineered to deliver reliable, repeatable results for profiling tasks. Its design focuses on a core set of functional features that directly address the need for accurate shape transfer. Below, we break down its material composition and practical sizing.
Material and Build
The gauge utilises two primary materials. The main body and tooth structure are made from ABS plastic. This material offers a good balance of rigidity for holding shape and a degree of flexibility, which is essential for the moving teeth. It is also lightweight, making the tool easy to handle and carry. The lock mechanism and critical wear points incorporate stainless steel. This corrosion-resistant metal ensures the locking function remains reliable over time and can withstand repeated use without degrading. This material combination aims for functional durability without excessive weight.
Size and Practical Fit
The tool's dimensions are 265mm in length, 130mm in width, and 27mm in height. This gives it a substantial 10-inch (approx. 250mm) working length for copying profiles, which is suitable for many common applications like skirting boards, worktop edges, or pipe curves. The width and height provide a stable base and adequate tooth travel. The specified accuracy of 1mm indicates the tool's capability for precise transfer, meaning the copied profile will be within 1mm of the original shape, a tolerance acceptable for many fitting and marking jobs.
Uses and Placement
The contour gauge is designed for scenarios where traditional straight edges or rulers are insufficient. Its value is unlocked in tasks involving non-standard shapes and angles. We explore its primary applications in both professional and home settings.
Event or Professional Use
For trades such as carpentry, tiling, plumbing, and flooring, this tool is a practical aid. A carpenter can use it to accurately transfer the profile of an existing moulding or skirting board when making a replacement piece. A tiler can copy the curve of a bathtub or an arched niche to cut tiles for a perfect fit. The lock belt is crucial here, as it allows the captured profile to be taken to the cutting area without the teeth shifting, ensuring the cut material matches the on-site measurement exactly.
Everyday Home Use
For the DIY enthusiast, the gauge simplifies projects that involve fitting materials around obstacles. It can be used to measure and cut laminate flooring to fit around pipework or curved kitchen islands. When installing a worktop that needs to fit snugly against an uneven wall, the gauge can copy the wall's contour onto the worktop material for a precise cut. It turns a complex measuring task into a simple press, lock, and trace operation.
Benefits and Buying Value
The value of this tool lies in its specific function and the practicality it brings to a niche but common problem. It is not a general-purpose tool, but within its scope, it offers clear advantages.
Reuse and Low Maintenance
As a mechanical tool with no electronic components, it requires minimal maintenance. The stainless steel parts resist rust, and the ABS plastic can be wiped clean. There are no consumables; the tool can be used repeatedly for different profiles over many projects. Its simplicity means there is little to go wrong, and its durability stems from its straightforward material construction.
Why Choose This Product
This contour gauge presents a focused solution. The infinite splicing teeth adapt to virtually any curve, the lock belt ensures the captured shape doesn't change, and the 1mm accuracy provides confidence in the result. Compared to makeshift methods, it offers speed and reliability. For anyone regularly needing to transfer irregular shapes, it saves time and reduces material waste from inaccurate cuts. Its value is its specialised ability to perform a specific, tricky measuring task with consistency.
