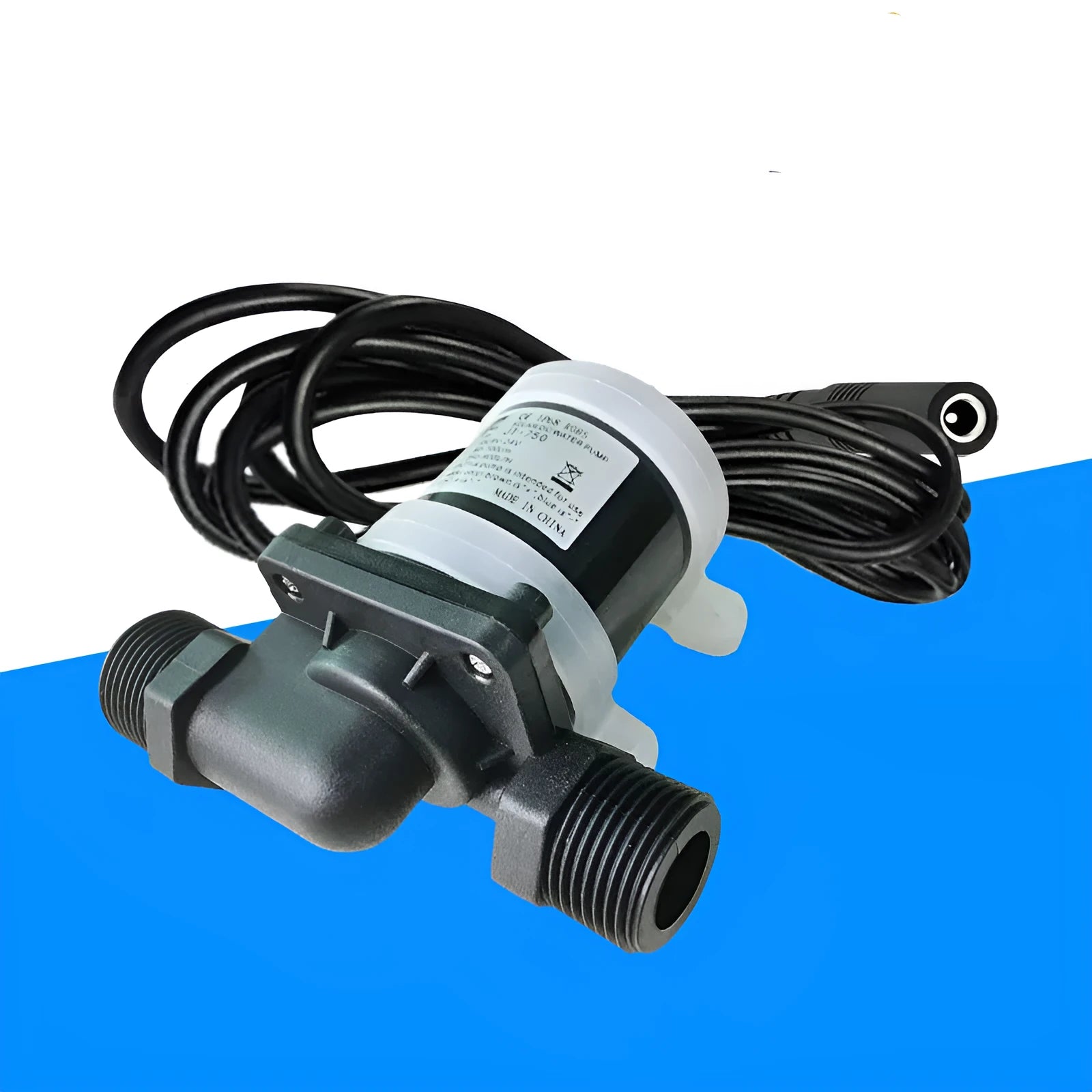

JT-750 Series DC Water Pump: A Low-Voltage Booster for Solar Heaters and Floor Heating

Integrating efficient water circulation into renewable energy and home comfort systems requires a reliable and appropriately specified pump. The JT-750 series DC centrifugal pump is designed for this role, operating on a 12-24V direct current supply to move clean water in applications like solar thermal panels and hydronic underfloor heating loops. With a flow capacity of 1.2 cubic metres per hour and the ability to push against a head pressure of 3 to 7 metres, it provides the necessary boost for these closed-loop systems. Its construction from engineering plastic offers a balance of durability and light weight, while the model's non-blocking design aims to maintain consistent performance. Available in several specific configurations, it allows installers to select the exact thread type and connection size for their project.

Features and Construction

The JT-750 pump's design centres on practical performance for residential and small-scale commercial water circulation. Its specifications are geared towards integration with existing DC power sources, such as those from solar PV systems, making it a cohesive component for off-grid or energy-efficient setups.

Material and Build

The pump utilises engineering plastic for its main housing and internal components. This material choice contributes to a lightweight product, with a total weight of 0.18 kg, and offers resistance to corrosion from clean water. The structural principle is based on a jet pump design with a horizontal shaft and a semi-open impeller, which is configured for a non-blocking flow path. This construction is specified for conveying clean water only, aligning with its intended use in heating system circuits.

Size and Practical Fit

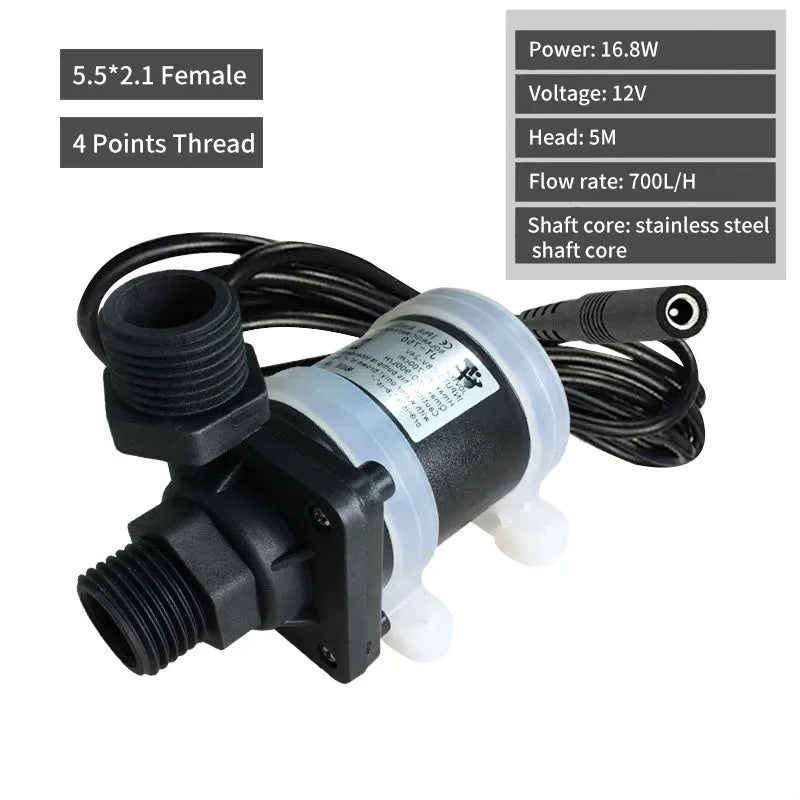

Physical connectivity is a key consideration, and the pump is offered with different connection options. The suction and outlet calibres are either 20 mm or 25 mm. Furthermore, the end connections are threaded, with variants providing either a 4-point or a 5-point thread. This means installers must select the correct model—such as a JT-750B4 (4-point thread) or a JT-750D5 (5-point thread)—to match their pipework. The pump is a single-stage unit with six impellers, contained within a compact horizontal footprint suitable for installation in various orientations where space is limited.

Uses and Placement

This pump is defined as a process pump, indicating its role within a larger mechanical system rather than as a standalone appliance. Its performance parameters make it suited for specific circulating duties in thermal and comfort applications.

Event or Professional Use

For professional installers and renewable energy technicians, the pump's clear specifications facilitate system design. Its DC operation allows it to be wired directly to battery banks or solar charge controllers, simplifying off-grid solar water heating installations. The availability of multiple voltage-specific models (12V or 24V) and thread types provides the flexibility needed to meet diverse project specifications and local plumbing standards, ensuring a correct fit for the intended hydraulic circuit.

Everyday Home Use

For homeowners with existing solar thermal systems or wet underfloor heating, this pump can serve as a replacement or upgrade component to improve circulation efficiency. Its low power draw, between 15 and 35 watts, makes it an energy-conscious choice for continuous running. The non-blocking design characteristic is intended to reduce maintenance concerns, promoting reliable operation within a clean, closed-loop water system that requires minimal end-user intervention once installed.

Benefits and Buying Value

The value of this pump lies in its direct application to specific technical scenarios. It is not a general-purpose pump but one whose specifications are matched to the demands of low-voltage heating system boosters.

Reuse and Low Maintenance

Being a component designed for integration into longer-lasting systems, its value is partly realised through sustained operation. The use of corrosion-resistant engineering plastic and a clean-water-only specification supports longevity in suitable environments. The simple, horizontal single-stage design with a semi-open impeller also points towards straightforward operation with fewer internal cavities where debris could accumulate, aligning with the stated non-blocking performance goal.

Why Choose This Product

Choosing the JT-750 DC water pump comes down to matching its technical specifications with system requirements. Its defined flow rate and head capacity are suited for boosting pressure in domestic-scale solar and heating circuits. The decisive factors are its DC voltage compatibility, which integrates with renewable energy setups, and the precise thread and calibre options that ensure a proper mechanical fit. It offers a targeted solution where a standard AC mains water pump would be unsuitable or less efficient due to power source constraints.
