DM90A High Precision Digital Multimeter with Automatic Range and Temperature Measurement

Designed for accurate electrical measurement, this digital multimeter combines automatic range selection with a comprehensive set of testing functions. Its 6000-count display provides clear, detailed readings across DC and AC voltage, current, resistance, and capacitance ranges. The inclusion of frequency measurement up to 99.99MHz, duty cycle display, and a continuity buzzer supports both basic circuit checks and more detailed diagnostic work. The DM90A variant extends this capability with dedicated thermocouple input for temperature readings from -20°C to 1000°C, making it a versatile tool for electronics work, automotive diagnostics, and general household electrical tasks.

Features and Construction

The multimeter's construction focuses on delivering reliable measurements within specified environmental limits. It is built to operate at altitudes up to 2000 metres and across a temperature range of 0 to 40°C, with a storage tolerance from -20 to 60°C. This practical design ensures consistent performance in workshop, garage, or indoor environments without requiring specialist handling.

Material and Build

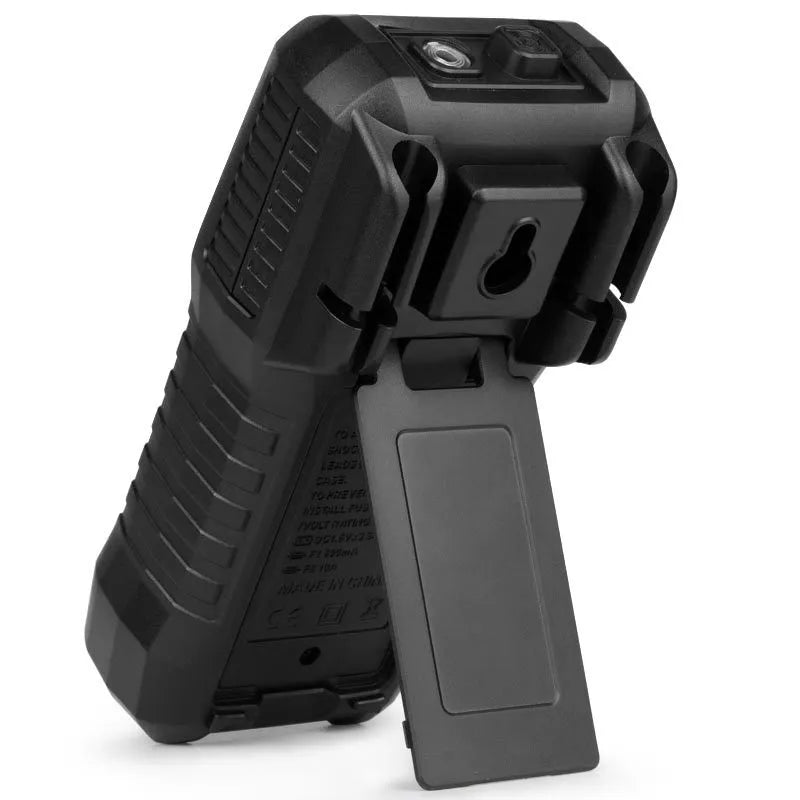

The unit uses a standard plastic housing common to handheld digital multimeters, providing a lightweight and portable form factor. The test leads feature metal probes for reliable electrical contact. Overload protection is provided for DC and AC measurements up to 250V true effective value, offering a basic safety margin during use. The automatic power-off function after about 15 minutes helps conserve the three included AAA batteries.

Size and Practical Fit

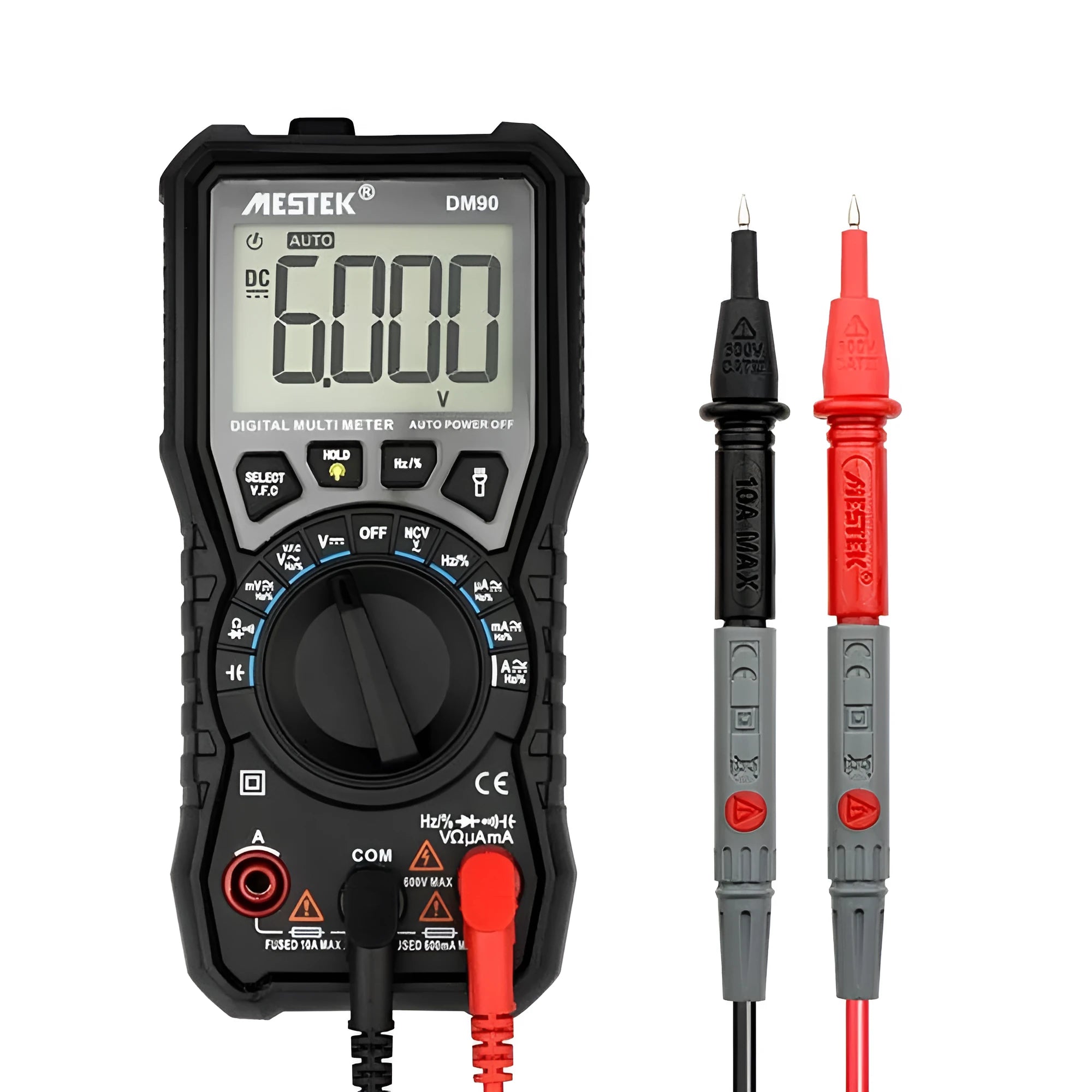

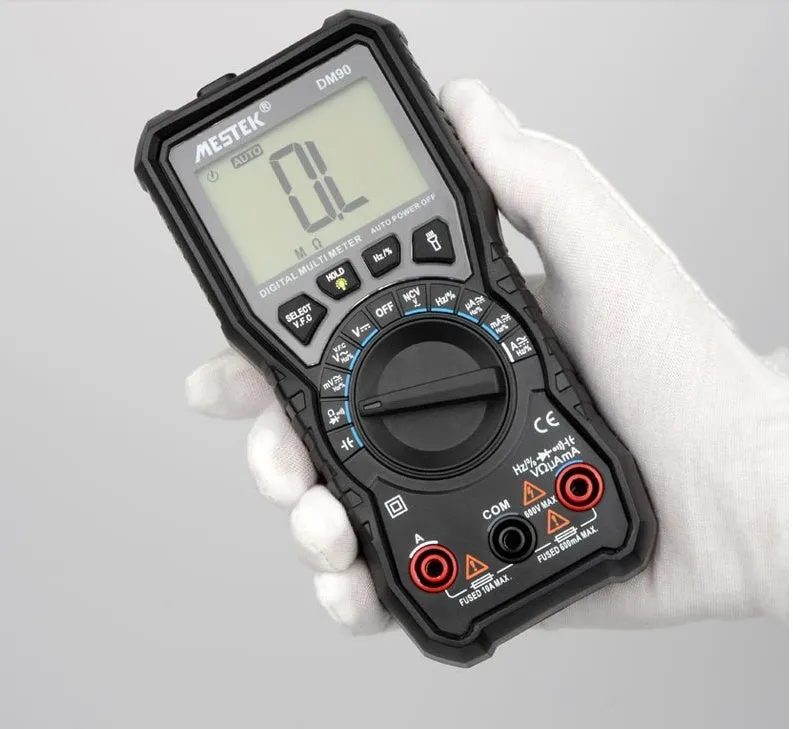

As a handheld device, its size is suited for single-handed operation, allowing the user to hold the meter while probing a circuit. The sampling rate of 0.4 seconds provides updated readings frequently enough for most troubleshooting scenarios. The clear labelling of input sockets—including a dedicated 10A input for higher current measurements—helps prevent incorrect connections, which is a key practical consideration for safe use.

Uses and Placement

This multimeter's combination of standard electrical parameters and extended functions like capacitance and frequency measurement defines its primary use cases. It bridges the gap between basic voltage testers and more advanced, specialist bench equipment, positioning it as a general-purpose diagnostic tool.

Event or Professional Use

For professional maintenance, installation checks, or educational environments, the automatic ranging simplifies operation by eliminating manual range switching. The ability to measure capacitance up to 99.99mF supports testing of electrolytic capacitors in power supplies, while the frequency and duty cycle functions are applicable to checking signal generators, motor drives, or automotive sensors. The thermocouple function on the DM90A model allows for temperature monitoring in mechanical systems, electrical enclosures, or during prototyping.

Everyday Home Use

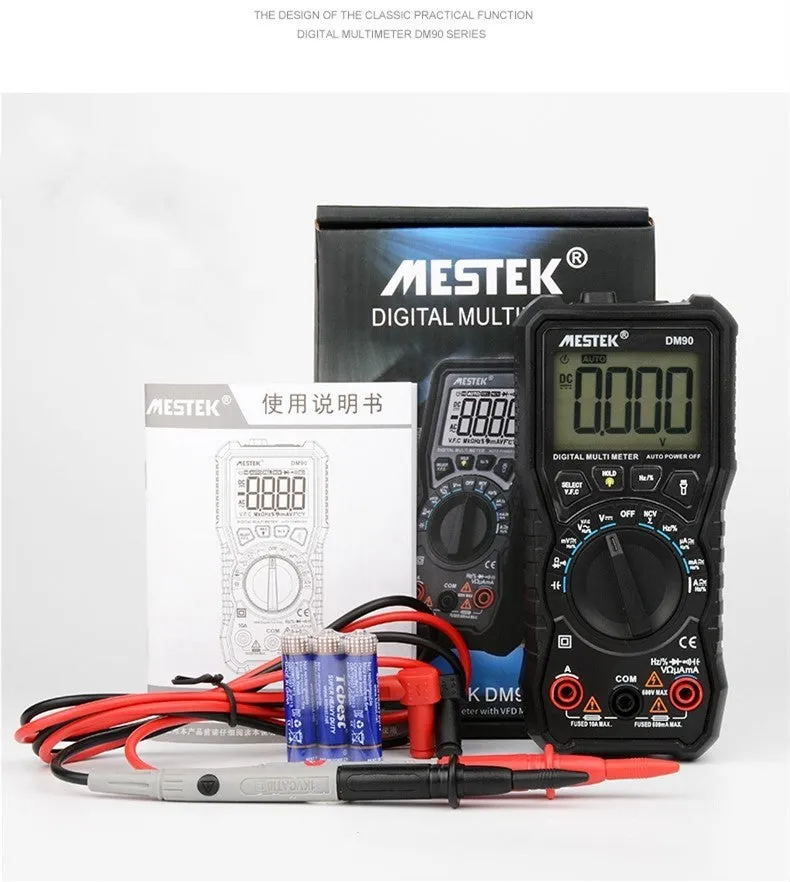

At home, the multimeter can verify mains voltage, check battery levels, test fuses, and diagnose faulty appliances using the continuity buzzer. The diode test function helps identify faulty components on circuit boards, which is useful for repairing electronics. The clear display and automatic power-off make it straightforward for occasional users, while the included batteries and test leads mean it is ready for immediate use after unboxing.

Benefits and Buying Value

The value of this multimeter lies in its breadth of measurement functions paired with automatic operation, reducing the learning curve for less experienced users while still offering the parameters needed for common tasks.

Reuse and Low Maintenance

The device is designed for repeated use across its operating temperature and humidity range. The automatic power-off conserves battery life, and the use of standard AAA batteries means replacements are easily sourced. No specific calibration or servicing schedule is indicated, suggesting it is maintained through typical careful handling and battery changes as needed.

Why Choose This Product

This multimeter is a suitable choice when you need a single tool that covers voltage, current, resistance, capacitance, and frequency without requiring manual range adjustments. The addition of thermocouple temperature measurement in the DM90A model provides an extra function without significantly increasing complexity. It is a practical option for hobbyists, students, or technicians who require reliable readings for general electrical work rather than laboratory-grade precision.
