Handheld Digital Capacitance and Inductance Meter with LCD Backlight and 200pF to 20mF Range

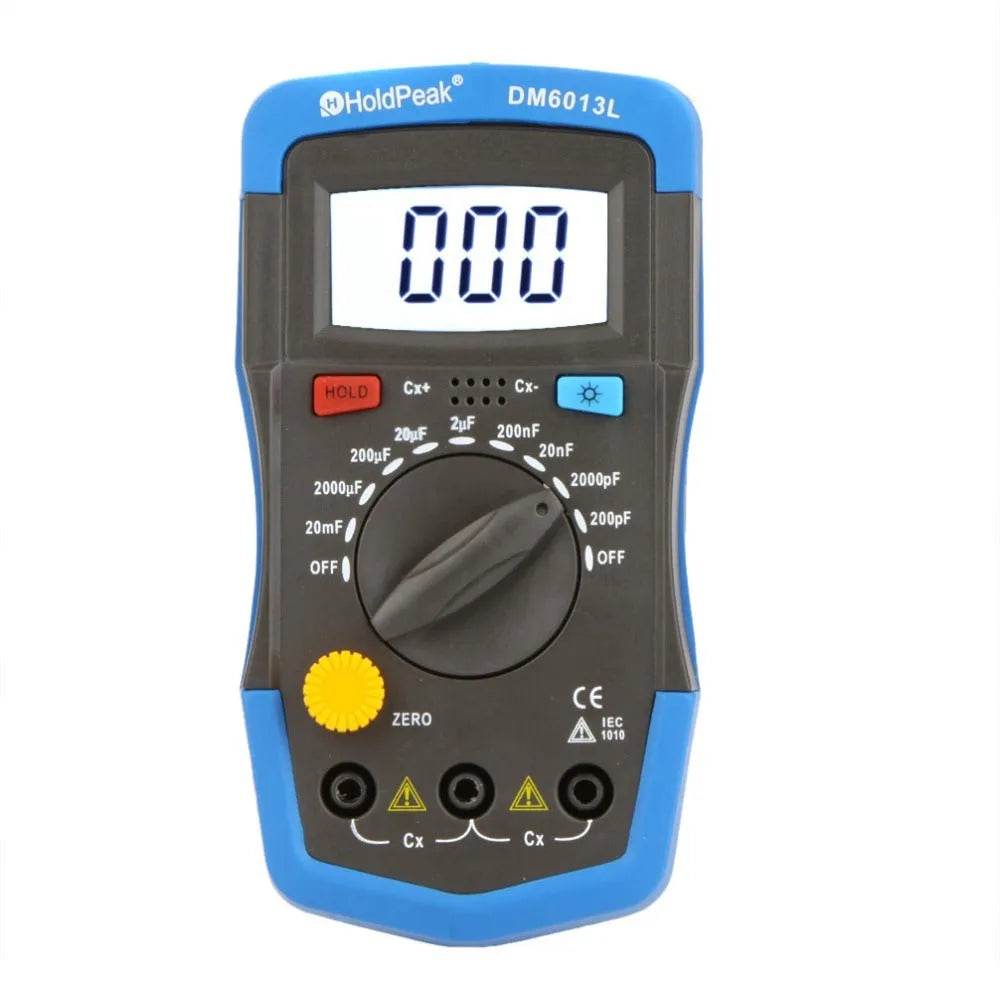

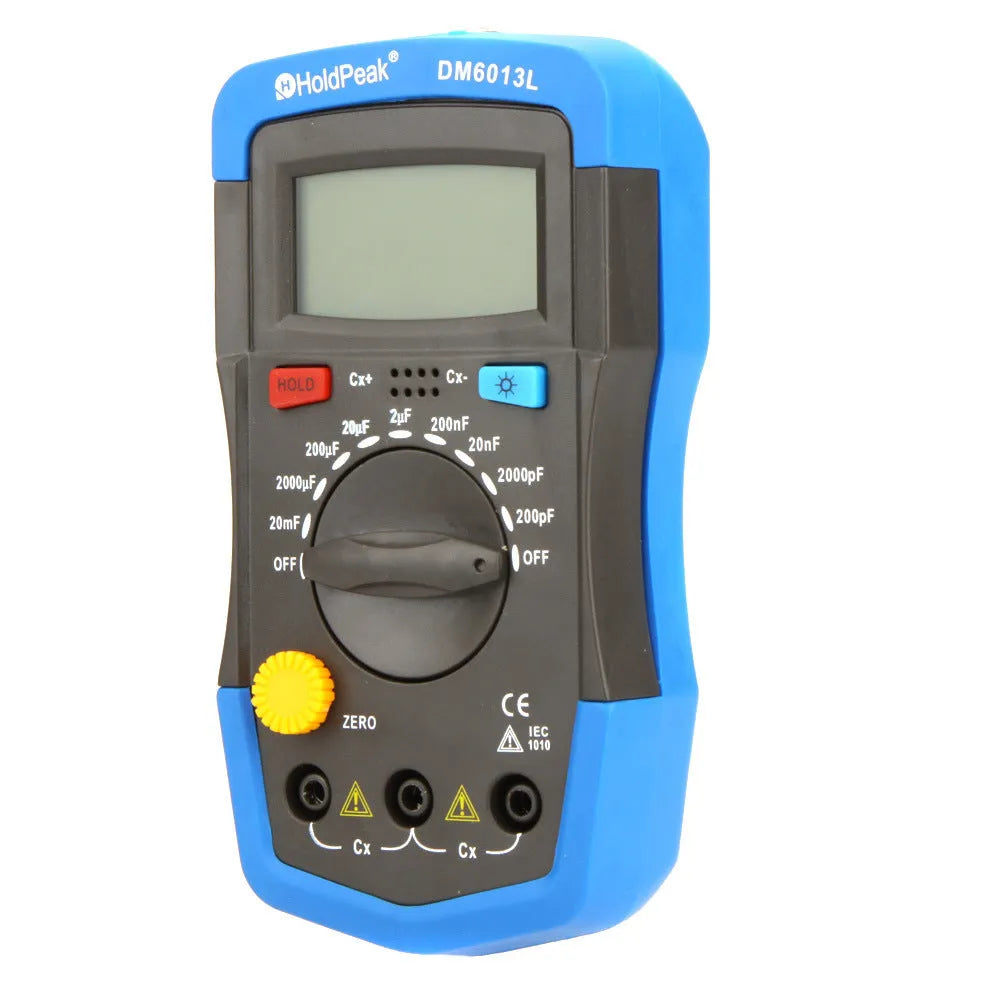

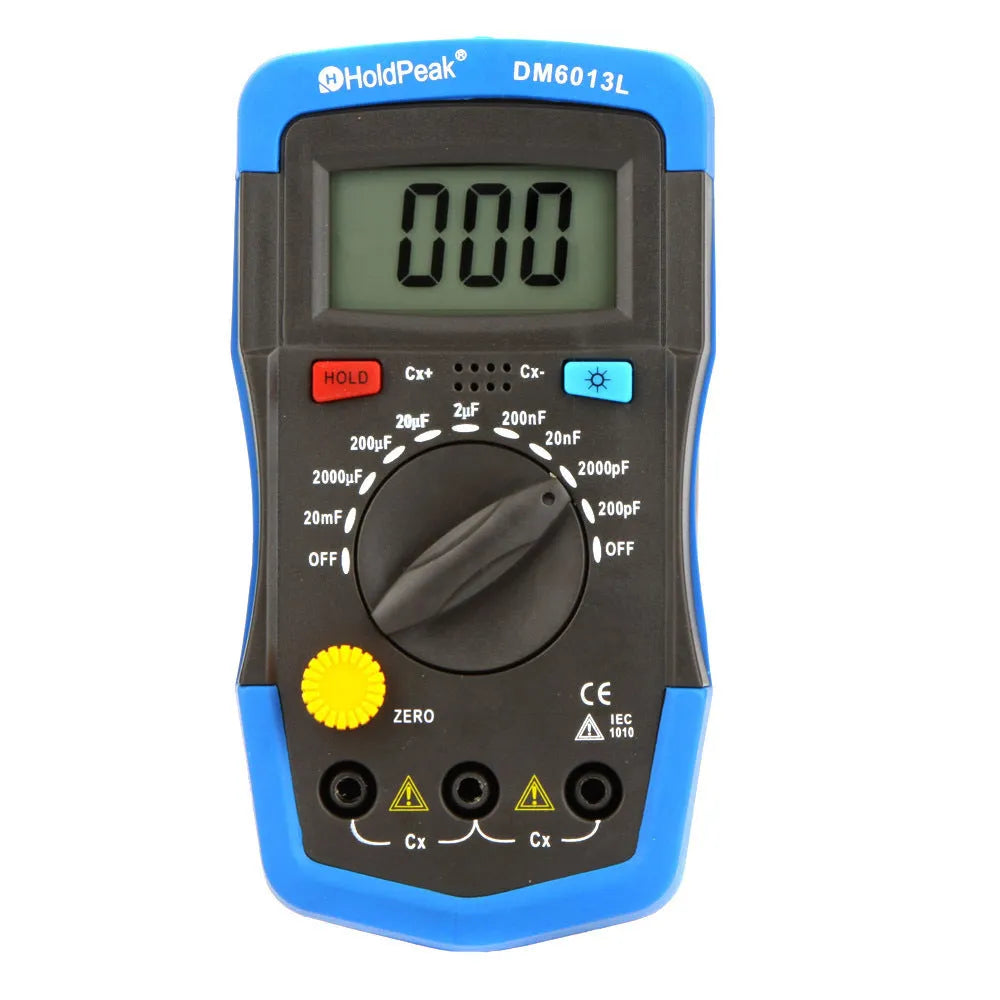

This DM6013L capacitance meter is designed for accurate measurement of capacitors over a broad spectrum, from 200pF to 20mF. It features automatic zeroing and polar selection, eliminating manual calibration steps and reducing user error. The LCD backlight and data hold function enhance usability in various lighting conditions, making it suitable for electronics technicians, engineers, and hobbyists who need reliable capacitance readings.
Features and Construction
The meter is built as a compact handheld device with a clear LCD display and intuitive controls. Its automatic functions and wide range coverage make it a practical tool for troubleshooting and component testing.
Material and Build
The body is made from durable plastic, suitable for portable use. The device measures 143 x 75 x 32mm and weighs 200g, making it easy to carry in a toolbox or pocket. The test leads are included and connect via standard banana plugs.
Size and Practical Fit
With dimensions of 143 x 75 x 32mm, the meter fits comfortably in hand and on workbenches. The package size is 15.5 x 10.5 x 4.5cm, and the total package weight is 252g.
Uses and Placement
This capacitance meter is suited for measuring capacitors in electronic circuits, during repair, or for component sorting. Its automatic zeroing and polar selection reduce setup steps, allowing quicker measurements.
Event or Professional Use
Electronics professionals can rely on this meter for accurate capacitance checks up to 20mF, with nine measuring sections covering 200pF to 20,000uF. The data hold function is useful when documenting readings on site.
Everyday Home Use
Hobbyists and DIY enthusiasts can use the meter for testing capacitors in audio equipment, power supplies, or vintage electronics. The backlight aids visibility in dark cabinets or under a bench.
Benefits and Buying Value
The DM6013L provides a straightforward way to measure capacitance with automatic features that simplify operation. Its wide range and practical functions offer good value for those who need accurate component testing.
Reuse and Low Maintenance
The meter requires only a 9V battery for power, and its automatic zeroing means no regular calibration adjustments are needed. It pairs with standard test leads, which can be replaced easily.
Why Choose This Product

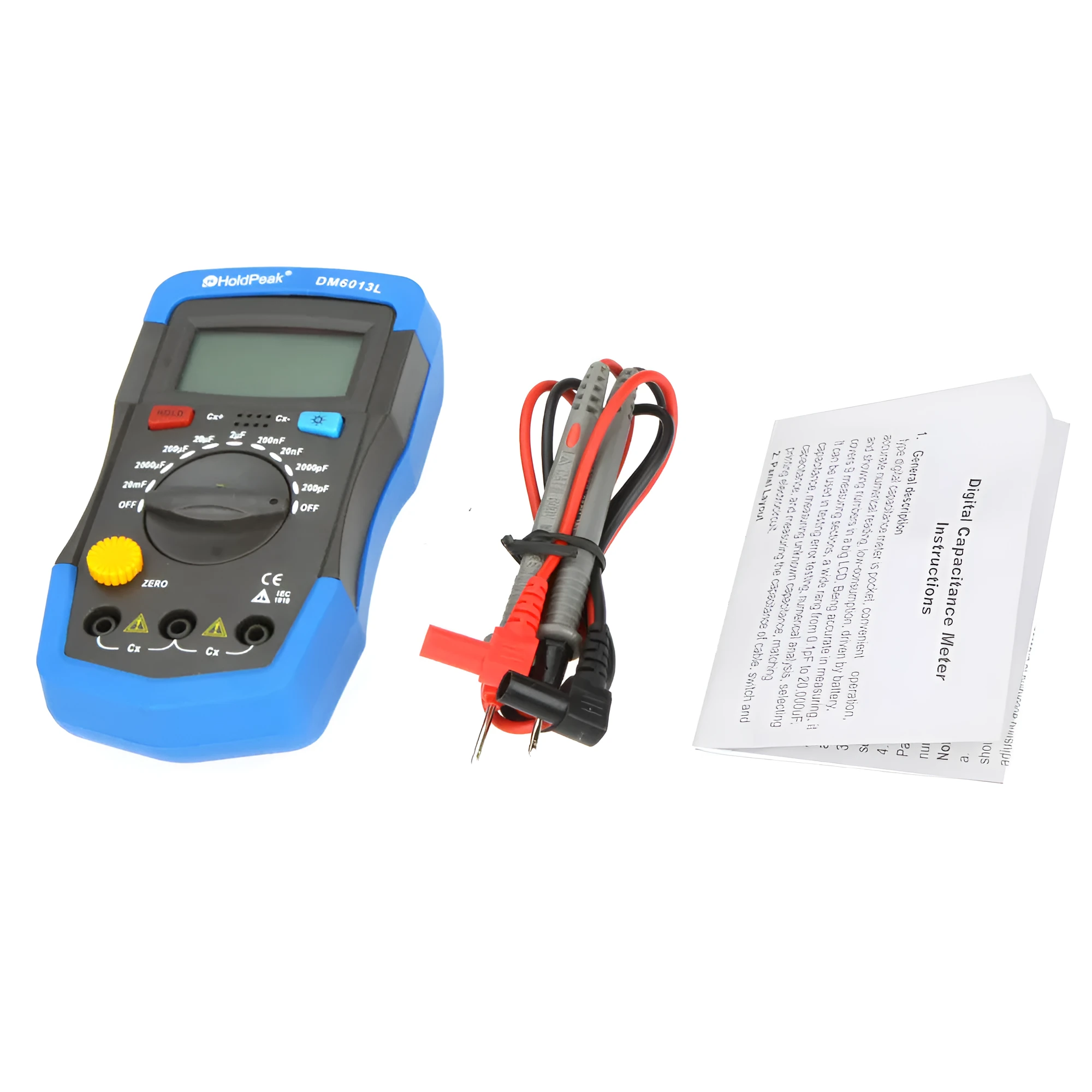

If you need a capacitance meter that covers from 0.1pF to 20mF with automatic functions and a backlit display, this model combines essential features in a compact form. It includes test leads and an English manual for immediate use.
