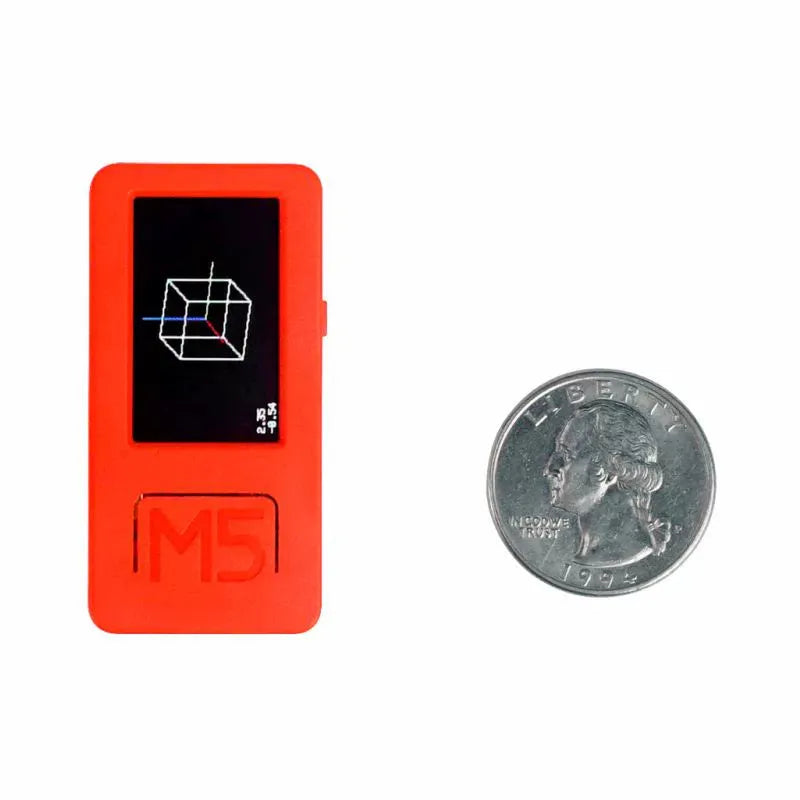

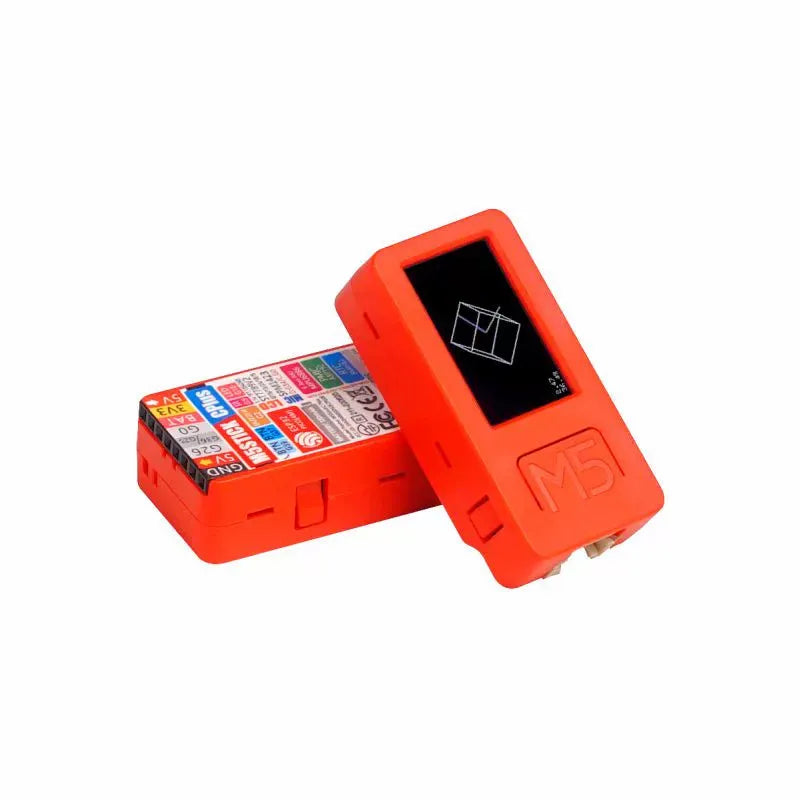

Official IoT Development Board with Graphical Programming Suite and 1.14-inch Colour Screen

This Official IoT Development Board Graphical Programming Suite is a self-contained hardware and software package designed for educational electronics and prototyping Internet of Things concepts. The core board provides the essential inputs, outputs, and processing required for beginner to intermediate projects, removing the need for complex wiring of basic components. It is powered directly via a modern Type-C USB connection, accepting a 5-volt supply at 500 milliamps, making it compatible with most computer USB ports or phone chargers. The included graphical programming software allows users to create functional code through a visual, drag-and-drop interface, lowering the barrier to entry for programming microcontrollers and understanding sensor data flows.

Features and Construction

The board integrates several key components into a single, ready-to-use unit. Its construction centres around a PC (polycarbonate) casing, which houses the main PCB and provides a durable base. This setup is designed for practical use on a workbench or desk, protecting the circuitry during project development and testing phases.

Material and Build

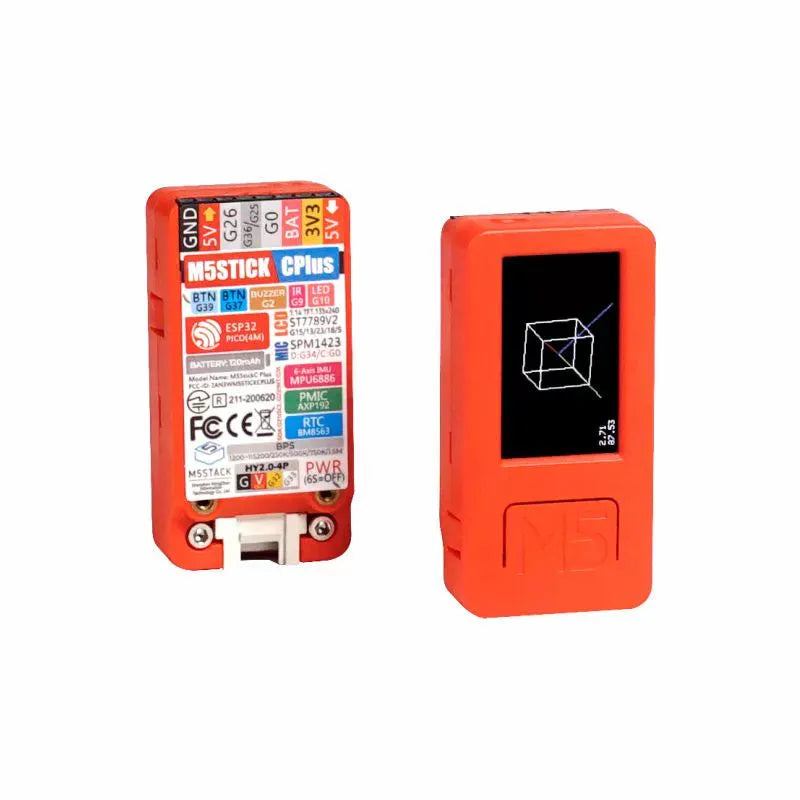

The development board's primary structural material is PC, or polycarbonate, used for its external casing. This material offers good impact resistance and rigidity, safeguarding the sensitive internal electronics like the ST7789v2 LCD driver chip, the BM8563 real-time clock, and the AXP192 power management unit. The use of a single, solid material for the casing simplifies the product's construction and contributes to a robust physical profile suitable for repeated handling in a learning or workshop environment.

Size and Practical Fit

While exact dimensional data is not provided, the board's component list indicates a compact and integrated design. The inclusion of a 1.14-inch LCD screen suggests a footprint designed to be handheld or placed easily on a desk. The combination of the Type-C port, Grove connector, buttons, microphone, and LED on one board means all core functionalities are contained within a single unit, eliminating the clutter of multiple separate modules and wires for basic projects, which is a significant practical advantage for learners.

Uses and Placement

This suite is fundamentally an educational and prototyping tool. Its primary use case is in environments where individuals are taking their first steps into physical computing, IoT device creation, or graphical programming. The board serves as a practical centrepiece for understanding how software instructions interact with hardware components like screens, buttons, and microphones.

Event or Professional Use

In structured settings like coding workshops, school STEM labs, or maker events, this board provides a standardised platform for instructors. Every participant works with identical hardware featuring a colour display, audio input, and programmable buttons, allowing lessons to focus on programming logic rather than hardware configuration. For professional prototyping, the Grove interface's support for I2C, general I/O, and UART offers a quick way to test sensor concepts or communication protocols before designing a custom PCB, speeding up the initial validation phase of a project.

Everyday Home Use

For the hobbyist or student learning at home, this suite offers a straightforward entry point. The graphical programming interface paired with the onboard peripherals allows for the creation of simple interactive projects, such a sound-activated display, a basic digital clock using the RTC, or environmental monitors by adding a Grove sensor. The Type-C power means it can be run from a laptop or a standard USB wall adapter, requiring no specialised power supplies, making it convenient for use in a bedroom or home office setup.

Benefits and Buying Value

The value of this product lies in its integration and focus on ease of use. It consolidates several commonly needed components into one reliable package, backed by official software. This approach reduces initial frustration for newcomers and provides a known-good hardware base for more experienced users to build upon.

Reuse and Low Maintenance

The board is designed for repeated use across multiple projects. The graphical programming software can be used to flash new code onto the board endlessly, allowing it to function as a digital notepad, a sensor hub, or a simple game console on different days. With no moving parts and a solid PC casing, maintenance is minimal; keeping the Type-C port and Grove connector clean and free from physical damage is the primary care needed. This reusability makes it a cost-effective tool over time.

Why Choose This Product

Choosing this official IoT development board suite means selecting a streamlined path into hardware programming. The key differentiator is the combination of the 1.14-inch colour TFT screen with the graphical programming suite—many basic boards lack a display, making visual output more complicated. The inclusion of the microphone and Grove interface adds immediate functionality for interactive and sensing projects without extra purchases. For those whose primary goal is to learn concepts quickly and see tangible results, this integrated package removes common early-stage obstacles related to sourcing and connecting multiple discrete components.
