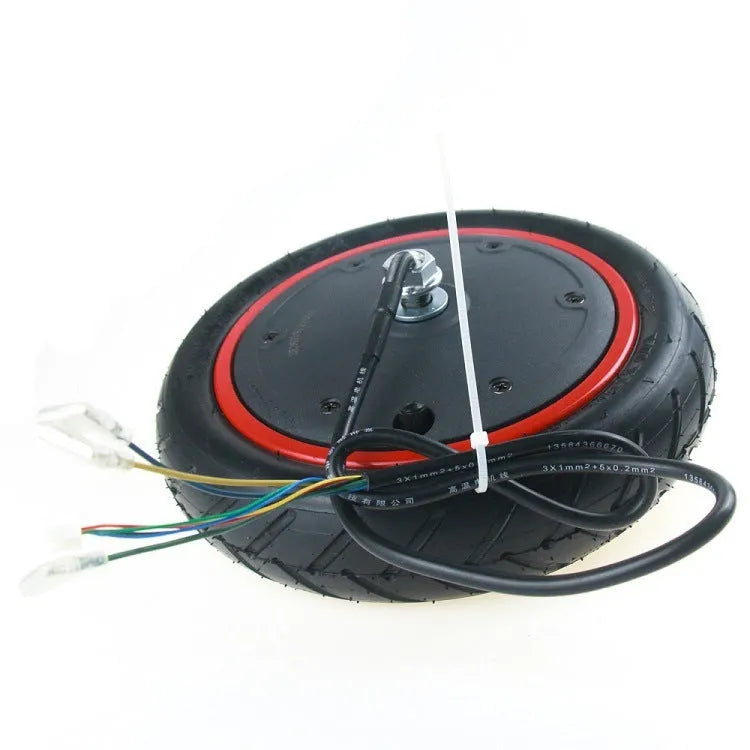

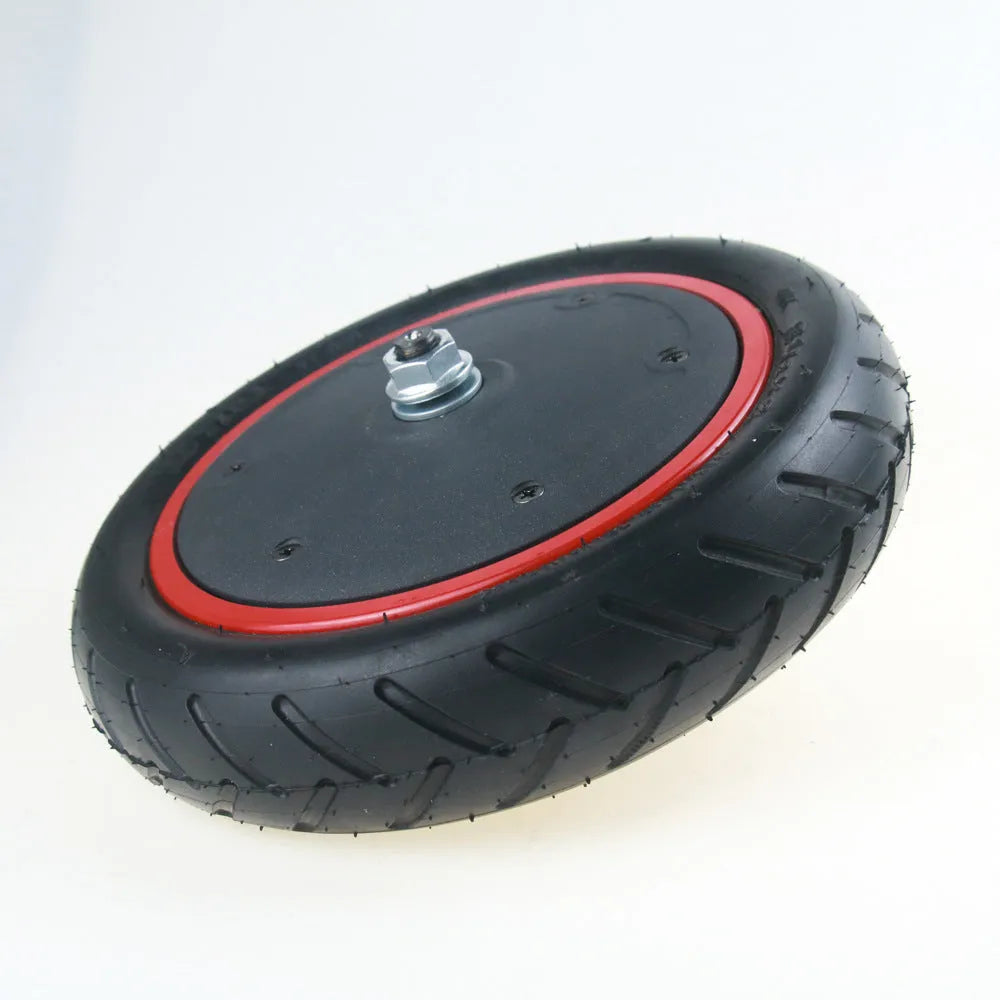

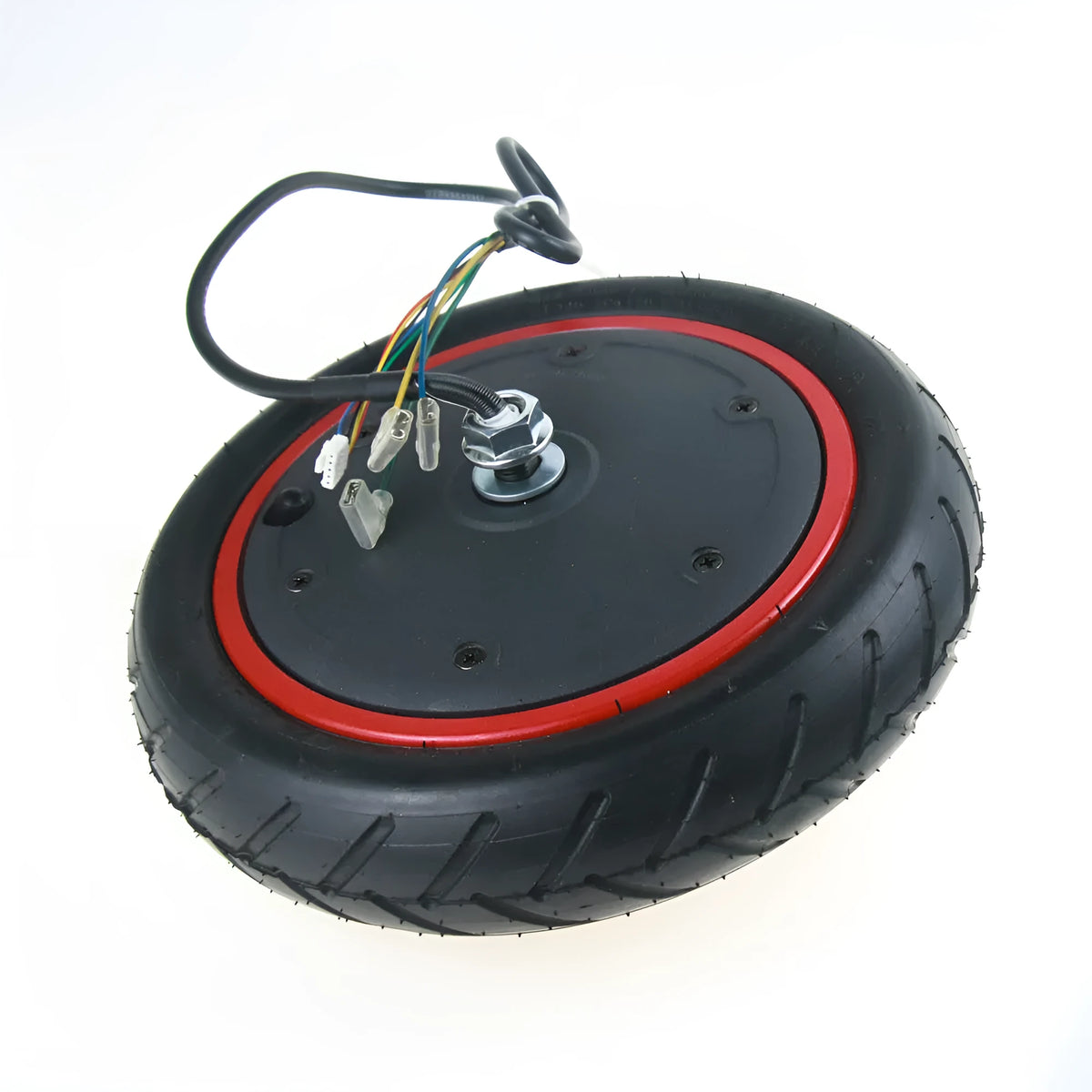

Pneumatic Front Wheel Rotor Motor for Xiaomi M365 PRO Scooter

This front drive wheel rotor motor is a replacement component for the Xiaomi M365 PRO electric scooter. It is built around a 350W rated motor with 36V rated voltage, and the source data also lists 750W instantaneous power. The motor uses 15 pairs of magnetic steel poles, 27 stator slots and magnetic steel with a 30*3mm specification. Maximum torque is stated at 21N.m, while no-load current is ≤1.2A and magnetic steel temperature resistance is ≥90℃. The colour option is M365 PRO, and the scope of application is the Xiaomi M365 PRO. This listing is for one front drive wheel, making it a practical spare for a scooter that needs its original front-wheel drive assembly replaced. No tyre pressure, tread pattern, speed rating or waterproof rating is provided, so those details should be checked against your requirements before ordering.

Features and Construction

The construction details centre on the motor and magnetic steel specification rather than on tyre tread or compound, which are not stated in the source text. The listed figures describe a front-wheel motor intended for the Xiaomi M365 PRO, with electrical and magnetic values that can be compared directly with the original part.

Motor and Electrical Ratings

The motor is rated at 350W with an instantaneous power figure of 750W, and it operates at a rated voltage of 36V. No-load current is listed as ≤1.2A. These values describe the electrical side of the front drive wheel and are the main figures to check when confirming suitability for a Xiaomi M365 PRO. The source text does not state charging time, range, top speed or controller compatibility, so no claims are made in those areas.

Magnetic Steel and Stator Details

The magnetic steel specification is 30*3mm, and the motor has 15 pairs of magnetic steel poles with 27 stator slots. Magnetic steel temperature resistance is given as ≥90℃. These details are relevant to the motor's internal build and to identifying the correct replacement part. Maximum torque is 21N.m, which is the highest torque figure provided in the source data. No additional performance curves or efficiency ratings are supplied.

Uses and Placement

This part is intended for the front wheel position on the Xiaomi M365 PRO, where the original front drive wheel rotor motor is fitted. It is a scooter-specific replacement rather than a universal wheel, and the source text lists only the Xiaomi M365 PRO under scope of application.

Front Wheel Replacement Use

Use this assembly when the front drive wheel of a Xiaomi M365 PRO needs to be replaced with a part matched to the stated motor specification. The packing list contains one front drive wheel, so a single unit is supplied. The colour option shown is M365 PRO, and the part is described as a pneumatic tyre front driving wheel rotor motor. The source text does not confirm compatibility with any other scooter model.

Scooter Maintenance and Repair

This wheel is relevant to repair or maintenance situations where the front motor assembly is being renewed. Because the source data names only the Xiaomi M365 PRO, it is best treated as a model-specific spare. Fitting should follow the scooter manufacturer's procedures for front wheel and motor removal. The source text does not include torque settings for mounting bolts or wiring instructions, so those should be taken from the scooter's own documentation.

Benefits and Buying Value

The practical value of this listing lies in supplying a front drive wheel matched to the listed M365 PRO specification, with the key electrical and magnetic figures stated up front. It allows a worn or faulty front wheel motor to be replaced with a part described using the same model reference.

Specification Matching

With 350W rated power, 750W instantaneous power, 36V rated voltage, 15 pairs of poles, 27 stator slots, 21N.m maximum torque and ≤1.2A no-load current all listed, the main specifications are visible before purchase. That makes it easier to compare against the part being replaced. The magnetic steel temperature resistance of ≥90℃ and the 30*3mm magnetic steel specification add further detail for identification.

Why Choose This Front Drive Wheel

This product is aimed at Xiaomi M365 PRO owners who need a front wheel rotor motor replacement rather than a generic scooter wheel. The stated scope of application, colour option and packing list all point to a single-unit front drive wheel for that model. No price comparison, durability rating, lifespan or warranty information is provided in the source text, so those factors are left for the buyer to confirm separately.
